Caudalímetros a Turbina
FLOWMEET turbine flowmeters are the preferred choice of many operators, due to their low acquisition, installation and maintenance costs. They offer high-precision, autonomous, and uninterrupted operation in highly hostile conditions. Typical facilities include crude oil and refinery products, storage tanks, and more.
Nuestros caudalímetros
En FLOWMEET podrá encontrar una alta variedad de caudalímetros a Turbina de muy alta calidad que se adaptan a la medida de su necesidad. Desde caudalímetros de bajo costo como la Serie AE, a caudalímetros de altísima calidad como la Serie AI

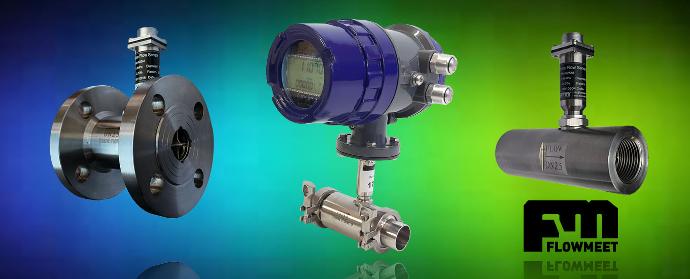

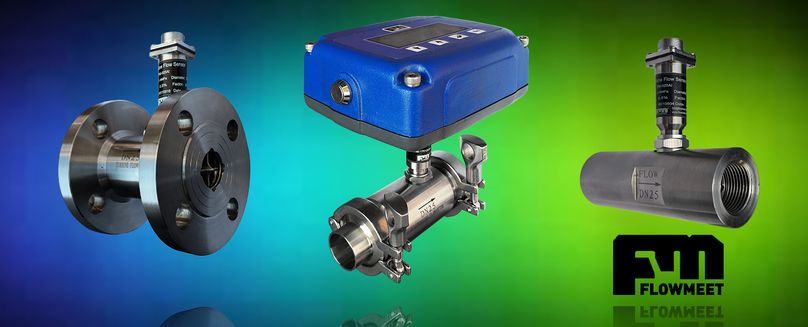

Turbina Serie AI
-
Error 0.5% (0.2% on request)
-
Diameters from 1/2" to 8"
-
Threaded, flanged and clamp connection
-
Digital flow computer (optional)
-
Pulse output to PLC (optional)

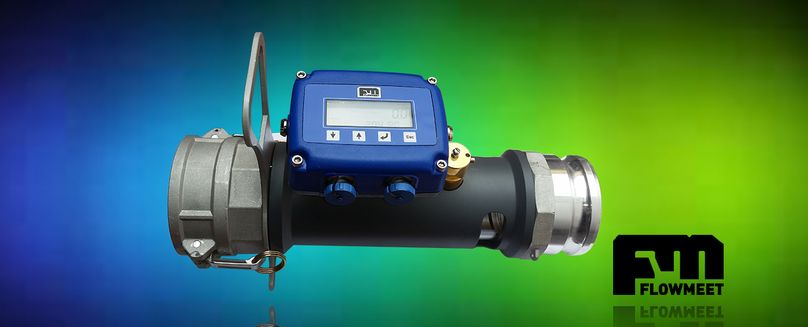

Turbina Serie DC
-
Direct to cistern (transparent to the operator)
-
Caudalímetro gravimétrico
-
Easy installation for a discharge measurement
-
3, 4 and 6 inches in quick coupler
-
Error <0.25% (2.5lt every 1000lt)
-
Flow detector (Avoid false measurements due to air flow)
-
Temperature compensation
-
Flow straightener
-
For the carrier or the station owner
-
libre de mantenimiento
-
Single push button operation
Turbina Serie WF
-
Error <2%
-
Robust and economical
-
Analog volume indication
-
Technical data conform to international standard ISO4064

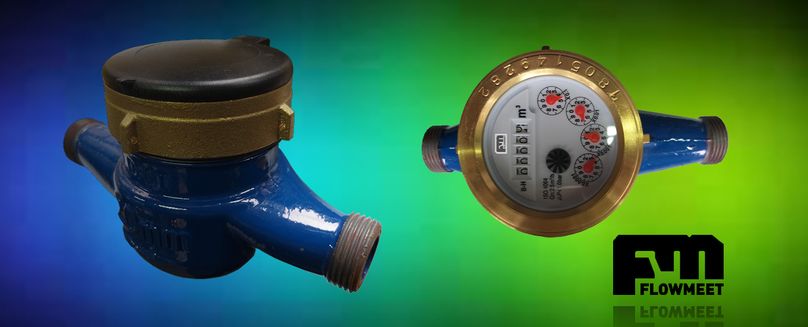

Turbina chorro múltiple Serie MJ
-
Error <2%
-
Robust and economical
-
Analog volume indication
-
Diameters up to 2"
-
Technical data conform to international standard ISO4064
