Turbidity sensors TD and TD LTS Series

      Download files

      User Manual TD Series (Esp)

      User Manual TD LTS Series (Esp)

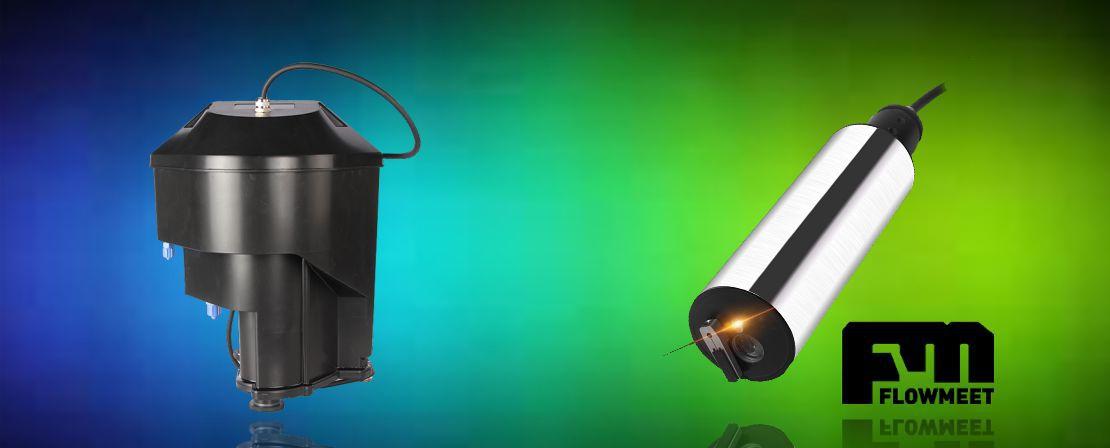

       The turbidity sensor TD series based on the infrared absorption scattered light method in combination with the application of the ISO7027 method, guarantees the continuous and precise detection of turbidity ensuring the stability of the data and asegurando la estabilidad de los datos and the reliability of performance. It has a built-in self-cleaning function.
       The turbidity sensor TD LST series based on visible absorption scattered light method with its 90° sensor accurately detect the turbidity in solutions with los concentration of suspended solids.

      ​



      Models and characteristics for turbidity meters of the TD and TD LTS series

      Turbidity sensors models
      Model LA-TD-P-M-R1-003
      (Works with the turbidity meter
      "LA-TDC-R-M-R1-485-420-A-24")
      		 LA-TD-SS-M-R2-010
      (Works with the turbidity meter
      "LA-TDC-R-M-R2-485-420-A-24")
      Measurement range
      		 0-100NTU
      		0-4000NTU
      Resolution Deviation in ranges of 0.001~40NTU is ±2% FS and ±5% in the ranges of 40~100 NTU
      		Less than ± 5%
      Body material ABS + SS316L
      		SS316L and PVC
      Temperature range 0~45℃ 0~45℃
      Conection Outlet: 1/2 NPT
      Inlet: 1/4 NPT       		Does not apply
      Ingress protection rating IP66 IP68
      Flow range
      		  300ml/min≤X≤700ml/min ≤2.5m/s

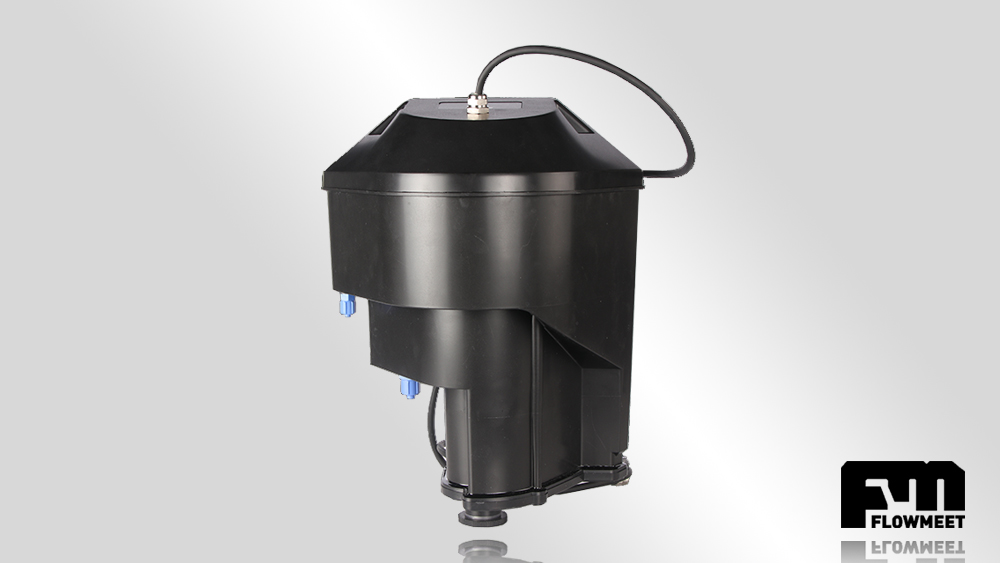

      Gallery

      Technical data

      Turbidity meter

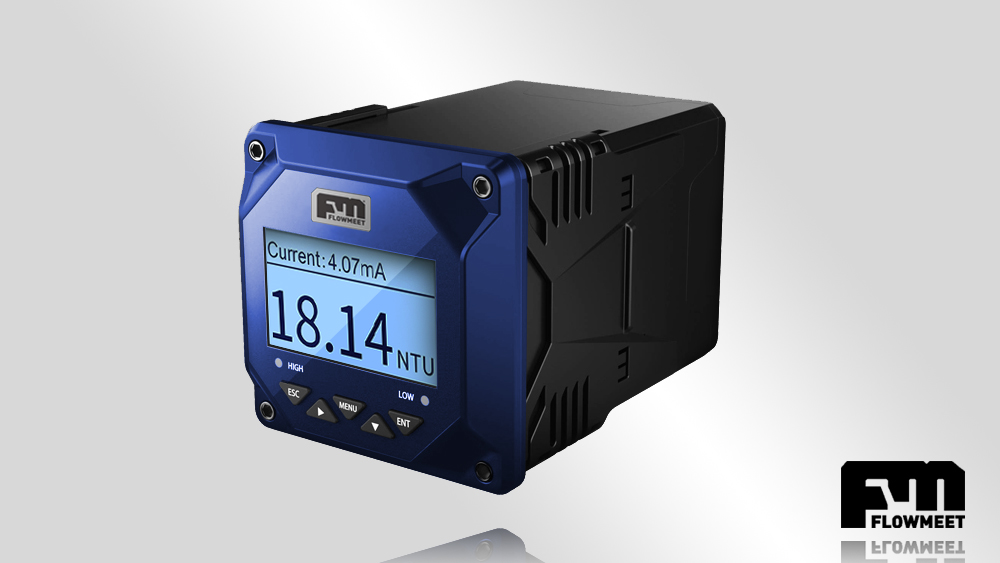

      LA-TDC-R-M-R1-485-420-A-24

      • Measurement range: 0.01-100 NTU
      • Resolución: 0.01NTU
      • It has a self-diagnosis function and data saving on a MicroSD card
      • Flow: 300 ml/min ~ 700 ml/min
      • Relay alarm
      • Analog output: 4-20mA
      • Digital output: RS-485
      • Ingress protection rating: IP65
      • Power supply: 24 VDC.

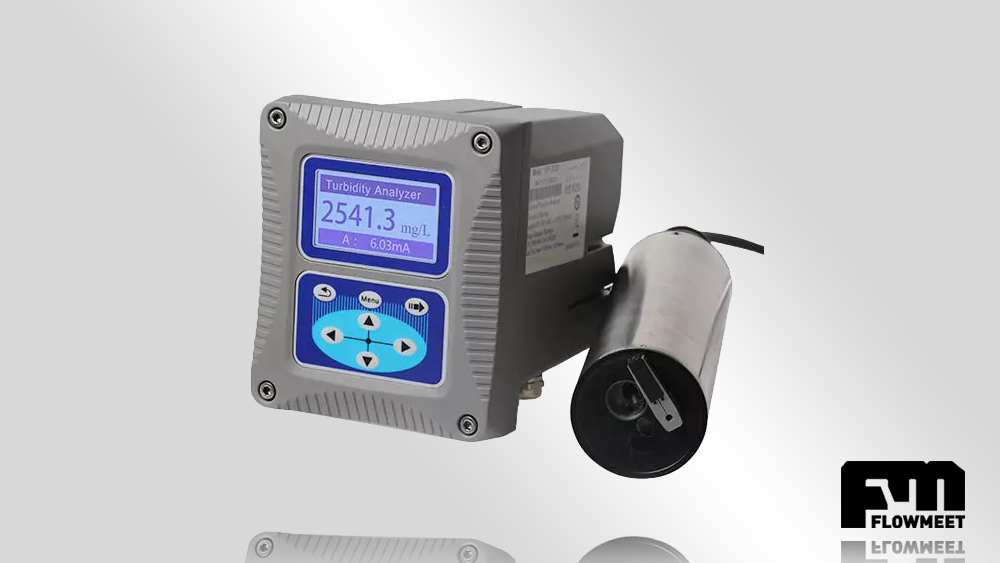

      LA-TDC-R-M-R2-485-420-A-24

      • Measurement range: 0.00 ~ 4000NTU
      • Resolución: 0.01NTU
      • Self-cleaning available for low maintenance
      • Relay alarm
      • Analog output: 4-20mA
      • Digital output: RS-485
      • Ingress protection rating: IP57
      • Power supply: 24 VAC

      Common aplications

       FlowMeet online turbidity analyzer TD series are widely use in application such as sedimentation tanks, waste water treatment, drinkable water plants, estimation of filtration efficiency in filtration equipment, etc.
