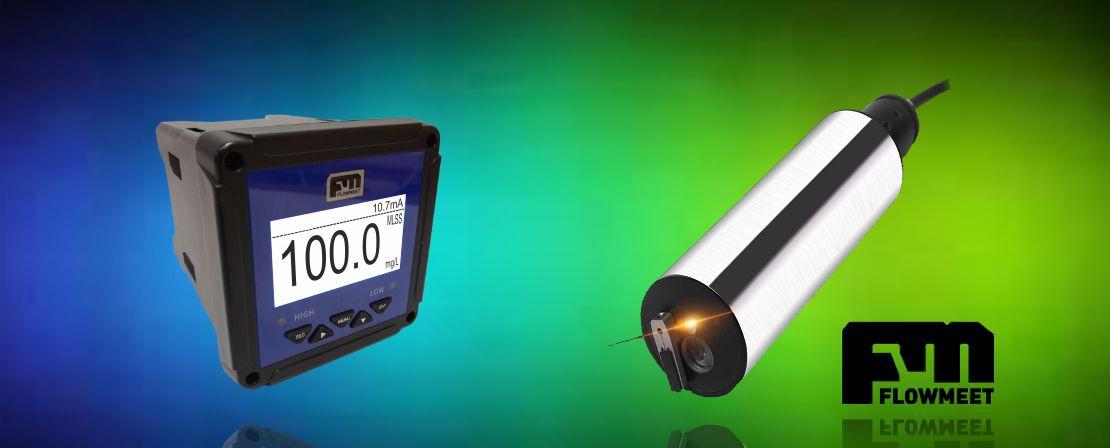

Suspended Solids sensor TSS Series

      Download files

      User manual TSS series (Esp)



      The turbidity sensor TD series based on the infrared absorption scattered light method in combination with the application of the ISO7027 method and the Beer-Lambert law allow it to detect and show the amount of suspended solids in a solution.




      Models and characteristics for suspended solids sensors of the TSS series

      Suspended solids sensors models
      Model             LA-TSS-SS-M-R3-010
      Measurement range
      		 0.1 ~ 120000 mg/L
      Precision Less than ­±5%
      Body material SS316L and PVC
      Temperatura range 0~45℃
      Flow ≤2.5m/s
      Ingress protection rating IP68
      Pressure ≤0.4MPa

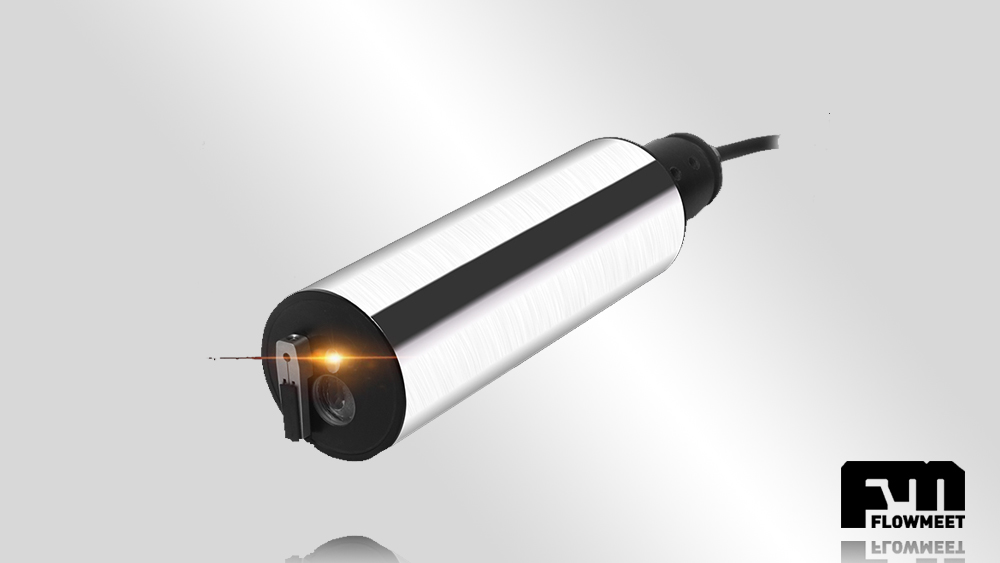

      Gallery

       Technical data

      Suspended solids meter

      LA-TSS-SS-M-R3-010

      • Measurement range: 0.1 ~ 120000 mg/L
      • Resolution: 0.01 mg/L
      • Self-cleaning available for low maintenance
      • Relay alarm
      • Analog output: 4-20 mA.
      • Digital output: RS-485
      • Ingress protection rating: IP57
      • Power supply: 24VDC


      Common applications

      FlowMeet online suspended solids analyzer TSS series are widely use in application such as sedimentation tanks, waste water treatment, drinkable water plants, etc.
