WF Series Turbine Flowmeter


      Download files

       Datasheet WF Series

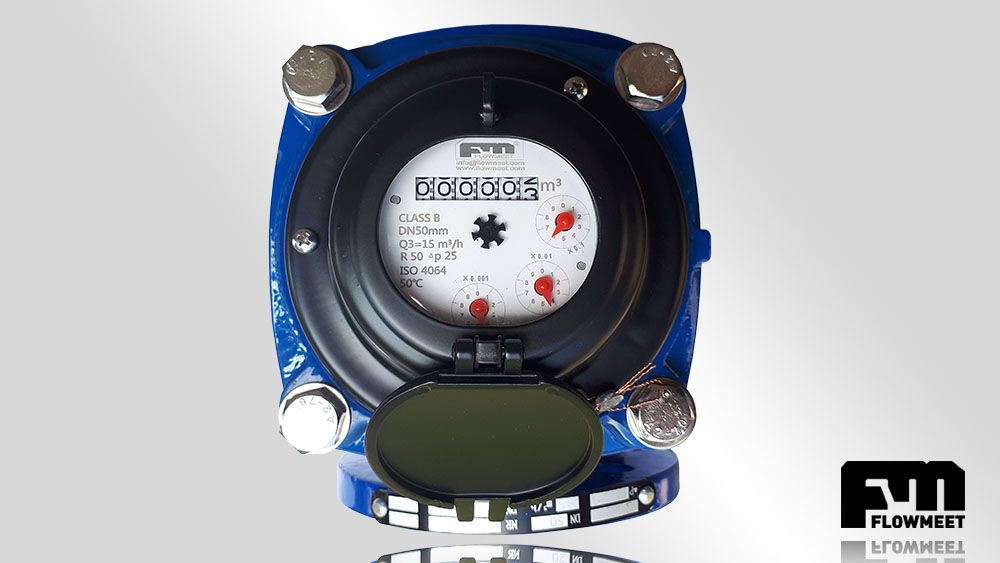

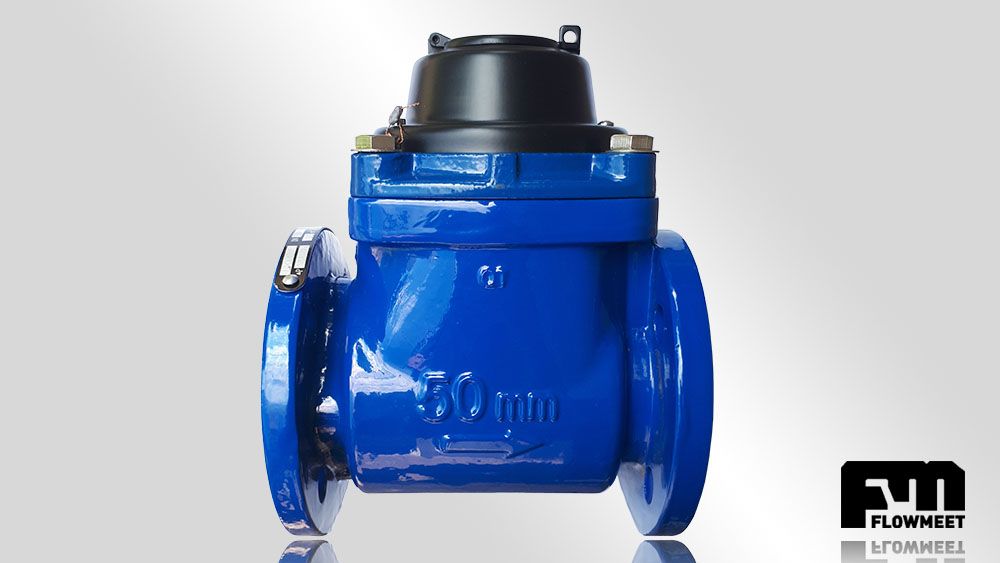

      The FLOWMEET's WF series water flowmeters are particularly robust meters that operate reliably in the most difficult conditions. They are designed to handle high flow rates, and are particularly suitable for industrial applications such as hydraulic works, water distribution, water monitoring and in agricultural systems. It is a flowmeter that encompasses three particularities that distinguish it from the rest of the water flowmeters, being economical, robust and with a very good accuracy. The propeller rotation transmission is protected by the direct magnetic drive that ensures that the indicator is sealed against water.

      Flow Ranges
      Model FM-050WF FM-065WF FM-080WF FM-100WF FM-125WF FM-150WF FM-200WF   FM-250WF FM-300WF
      Nominal Diameter [mm] 50  65 80 100 125 150 200 250 300
      Q4 Overload flow [m3/h] 31.25 50  78.75 125   200  312.5  500 787.5  1250
      Q3 Permanent flow [m3/h] 25 40 63  100 160  250   400 630  1000
      Q2 Transition flow [m3/h] 0.8 1.28  2 3.2  5.12   8 12.8  20.16  32
      Q1 Mínimum flow [m3/h] 0.5 0.8  1.26 2   3.2 5  8  12.6  20
      Minimum lecture [m3] 0.0005 0.0005 0.002 0.002  0.002  0.002  0.002  0.02  0.02
       Maximum lecture [m3] 999.999 999.999 999.999 999.999  999.999  999.999  999.999  999.999  9999.999




        Maximum permissible errors

      • From the minimum flow rate (Q1) included to the transition flow rate (Q2) exclusive ± 5%.

      • From transition flow (Q2) to overload flow (Q4): ± 2%;

      • (Hot water meter ± 3%)





      Dimensions
      Model FM-050WF FM-065WF FM-080WF FM-100WF FM-125WF FM-150WF FM-200WF   FM-250WF FM-300WF
      Nominal Diameter [mm] 50  65 80 100 125 150 200 250 300
      Longitude [mm] 200  200   225  250 250 300  350 450
      Height[mm] 214  224  279  289  299  319  346  434
      External diameter D1 [mm]  165 185  200  220  250  285  340  395(1MPa)/405 (1,6MPa) 445(1MPa) /460 (1,6MPa)
      Screw diameter D2 [mm] 125  145  160  180  210  240  295  350(1MPa)/355 (1,6MPa)  400(1MPa) /410 (1,6MPa)
      Connection bolts [n-M] 4-M16  4-M16  8-M16  8-M16   8-M16  8-M20  8-M20(1MPa)/12-M20 (1,6 MPa)   12-M20(1MPa)/12-M24 (1,6 MPa)  12-M20(1MPa) /12-M24 (1,6 MPa)


      Technical data

      • R50 (R80) Class

      • Easy reading

      • Multi-jet, dry disc, magnetic drive.

      • (Optional) Pulse output can be added upon request, such as Reed Swith or Hall, Pulse output: 1000L / P 、 100L / P 、 10L / P 、 1L / P.

      • Technical data conform to international standard ISO4064

      • Compact structure of antimagnetic function and attractive appearance

      Working Conditions:

      • Water temperature: T30 T50 T90

      • Water pressure class: MAP16 MAP10

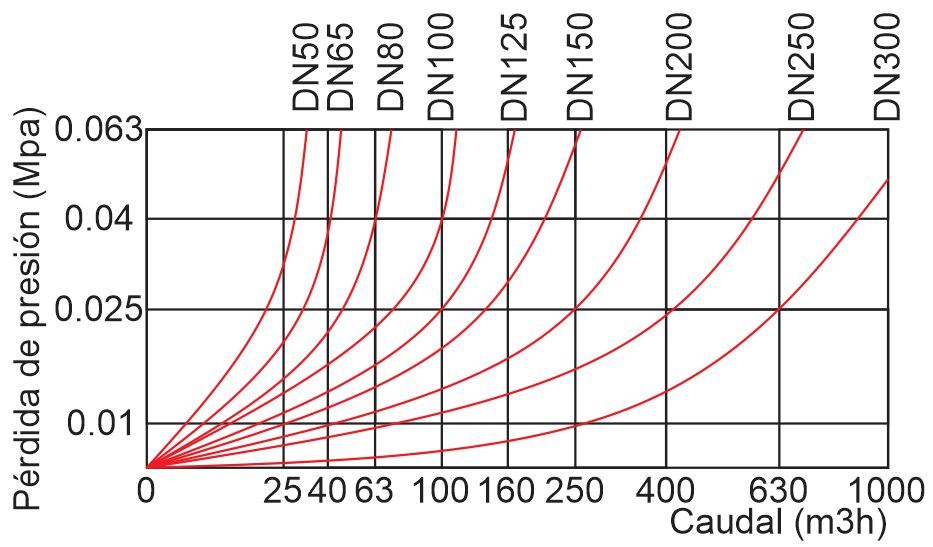

      • Pressure loss class: △ p63

      • Body and Flange Material: Carbon Steel

      • Connection process: ASME / ANSI # 150 flange.

      • Easy installation and maintenance

      • Dry dial, magnetic drive

      • Large flow capacity, small pressure loss

      • Resists water hammer.

      • Analog indication.

      • The indicator, as it is vacuum sealed, is free of condensation, which allows a clear reading of the data in the long term.

      Image Gallery

      Operation of turbine flowmeters

      Woltman meters measure the speed of water flowing through a turbine. The volume is calculated mechanically, knowing the area of ​​the section. The unique shape of the "paddle wheels" allows Woltman meters to cover a very large measuring range with an especially low pressure drop. They also start to measure reliably with small flow rates of water. In horizontal axis Woltman meters, the turbine axis is arranged parallel to the pipe axis. The rotation of the turbine is transmitted through an endless screw to a dry dial counter. Very robust construction, little head loss. The input and output bearings are specially designed to withstand natural hydraulic thrust.

      Common Applications

      • Volume measurement for wastewater treatment.

      • Measurement in hydraulic works

      • Irrigation systems monitoring

      • Water measurement in industrial processes
