AI Series Turbine Flowmeter


Download Files
User's Manual FM-520 (SPA)
FM-520 User's Manual (ENG)

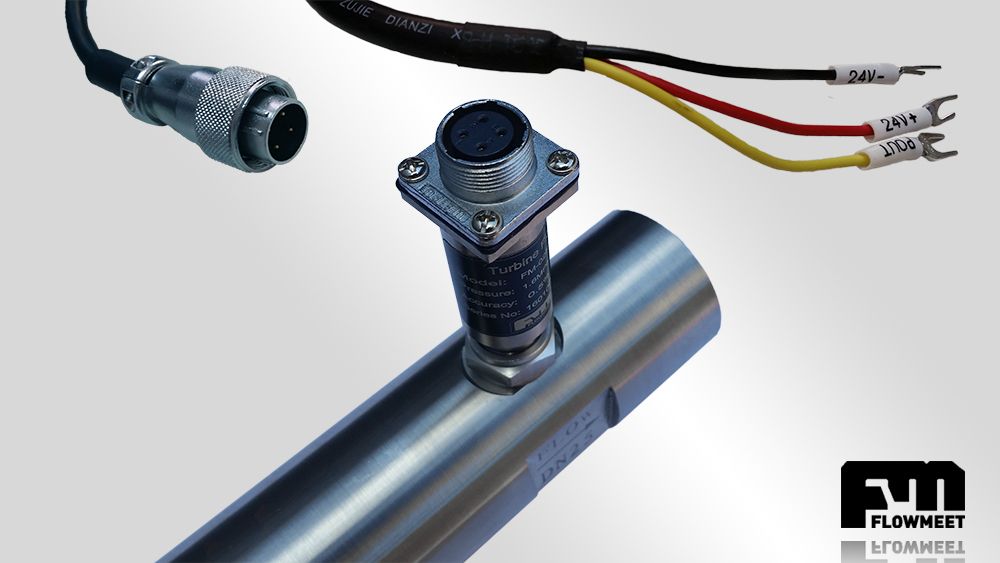

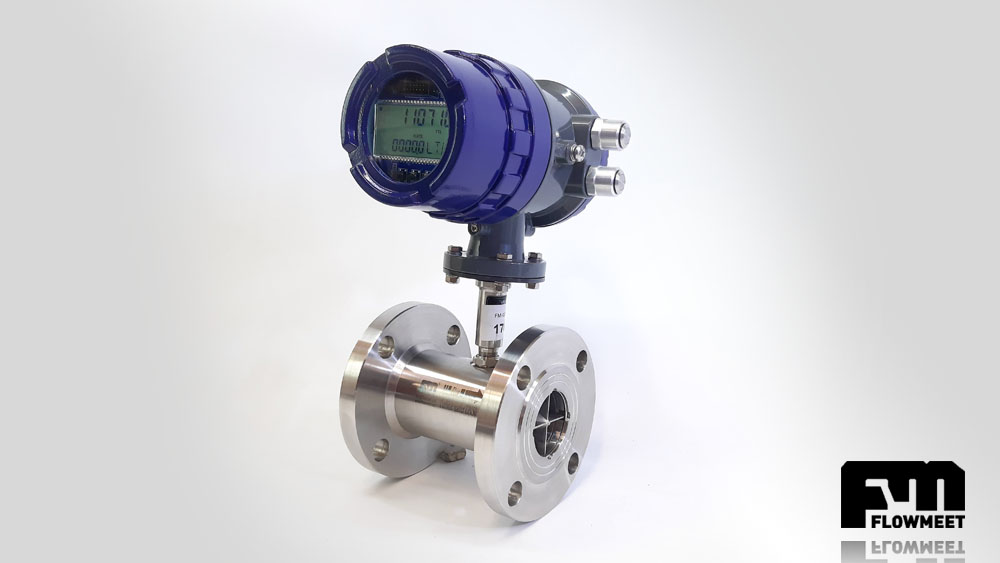

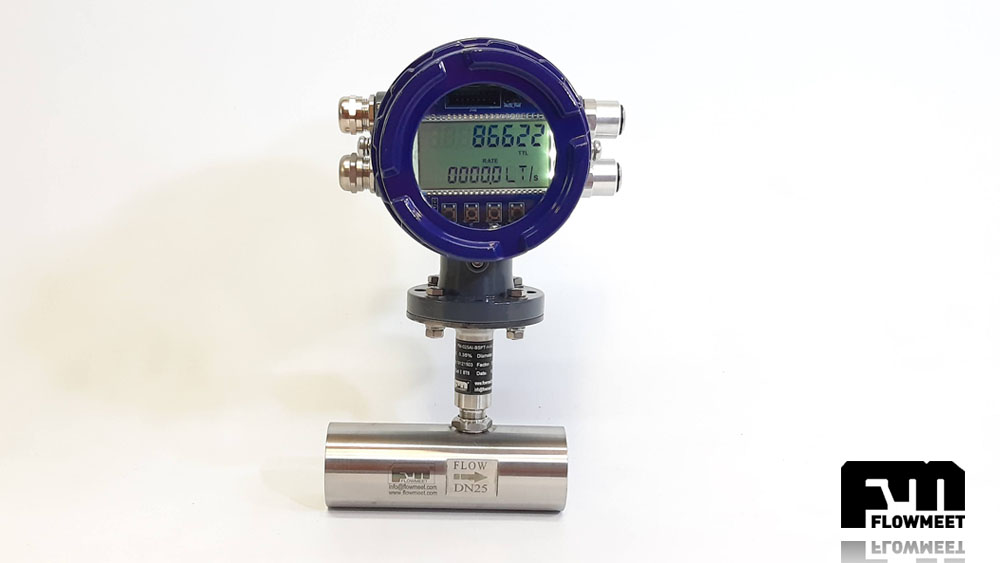

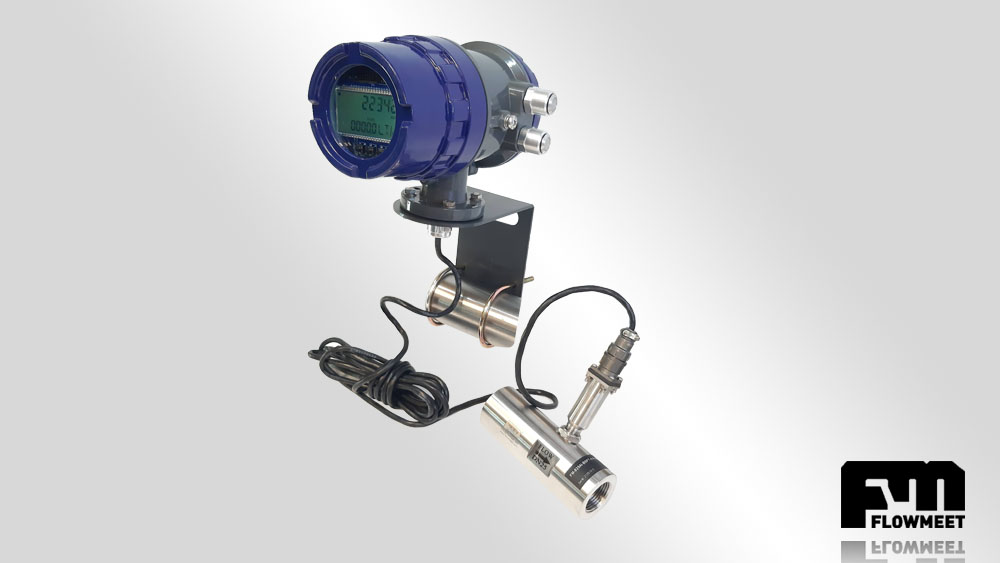

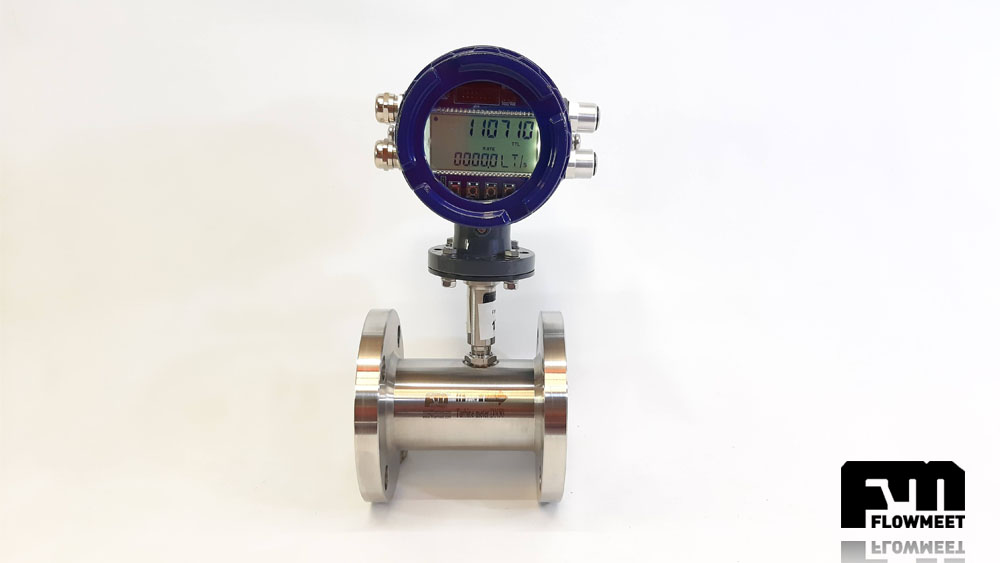

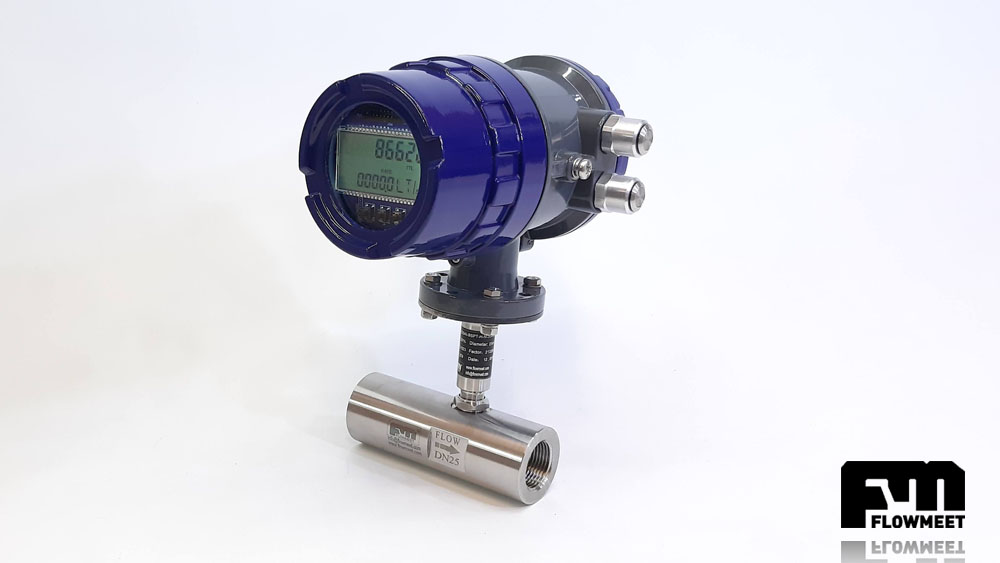

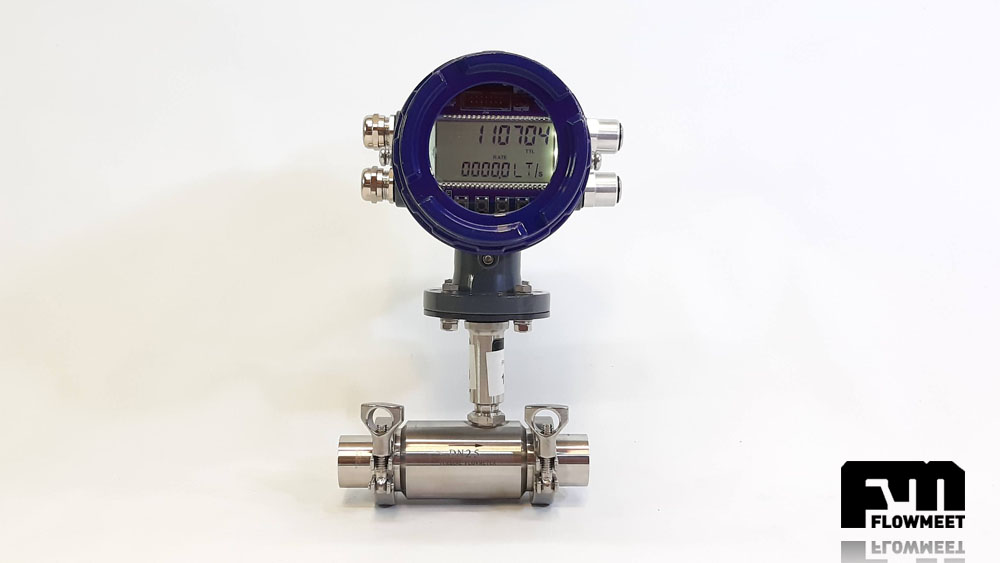

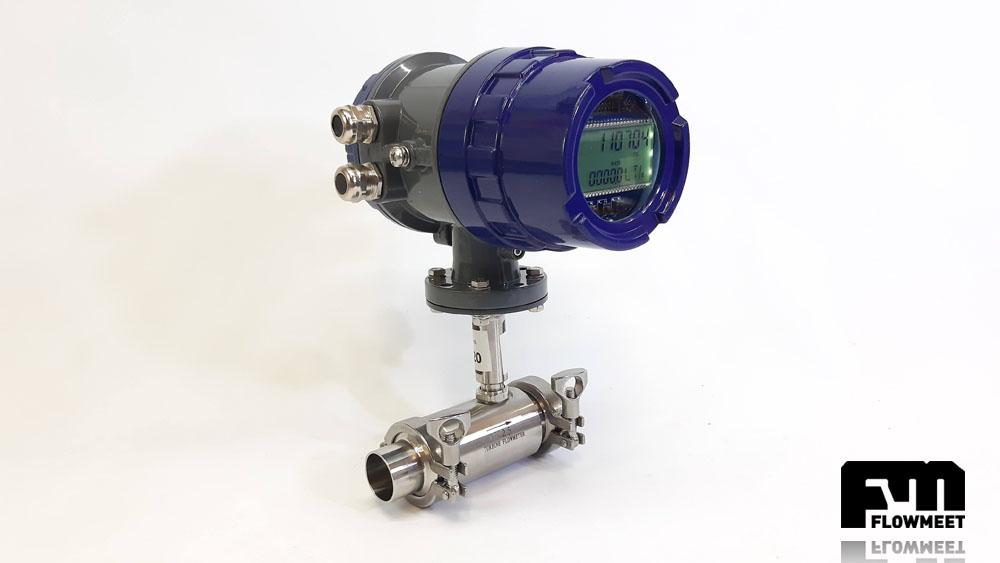

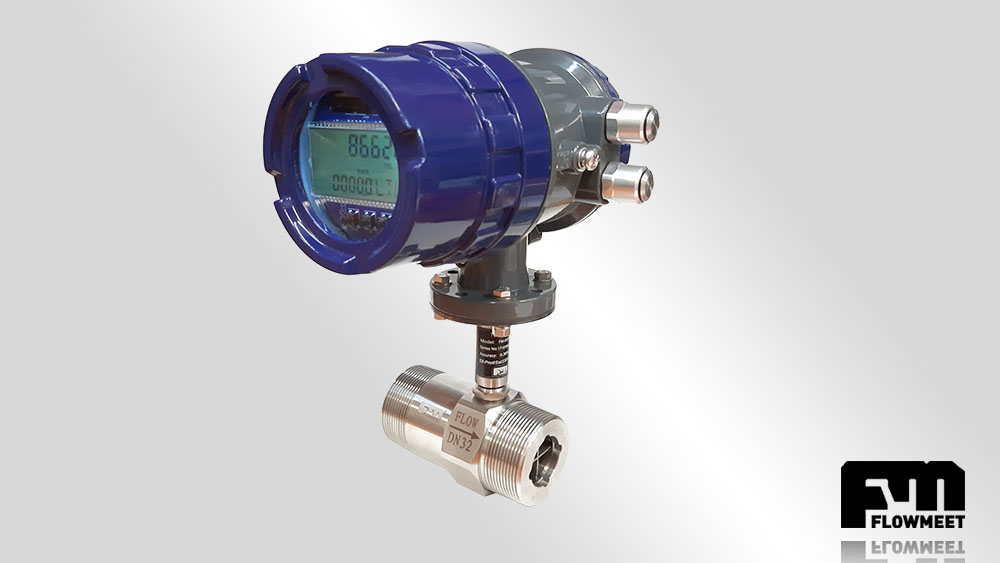

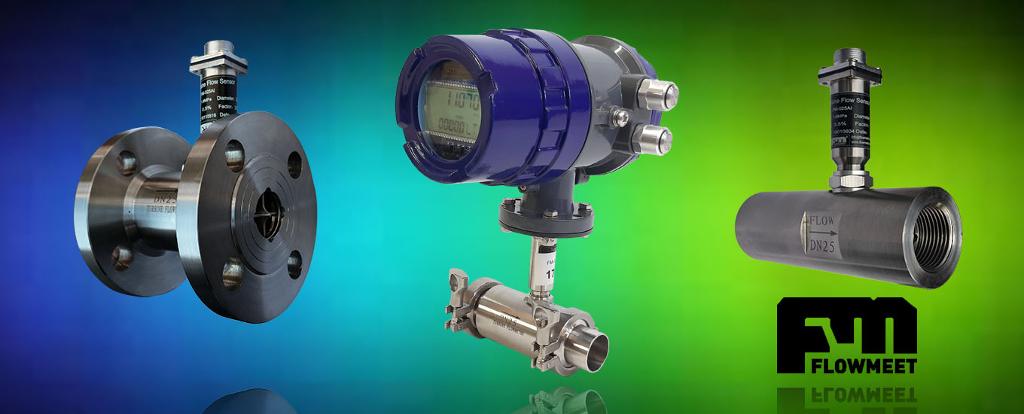

The FLOWMEET AI series full bore axial turbine flowmeters are the evolution of our AX series. The AX series for more than 15 years introduced more than 2,000 units to the market. This new series has a greater number of construction options in its rotor and body materials, more options for choosing a flow computer, connection processes, measurement specifications and communication protocols.


                       Small to Medium Flow Rate Meters
Model FM-004AI FM-006AI FM-010AI FM-015AI FM-020AI FM-025AI FM-032AI
Connection [inches] 1/2" BSPT MACHO 1/2" BSPT MACHO 1/2" BSPT MACHO 1" BSPT MACHO 1" BSPT MACHO 1" BSPT / BRIDA 2" BSPT MACHO
Nominal Pressure [bar] 63 63 63 63 63 63 16
Min. Flow Rate  [Lt/min] 0.7  1.7 3.3  8  13  17  25
Max. Flow Rate [Lt/min]  4 10  20  100  130  160  250
Min. Flow Rate [m3/hr] 0.04 0.1 0.2 0.5 0.8 1 1.5
Max. Flow Rate [m3/hr] 0.25 0.6 1.2 6 8 10 15
Length [mm]       75 85 140



                    Medium to High Flow Rate Meters
Model FM-040AI FM-050AI FM-080AI FM-100AI FM-150AI FM-200AI
Connection [inches] 2" BSPT MACHO 2" BSPT/  ASME-150 3" BSPT/ ASME-150 4" Brida ASME-150 6" Brida ASME-150  8" Brida ASME-150
Presión máxima [bar] 63 63 63 15 15 15
Caudal mínimo [lts/min] 30 60 160 330 500 1300
Caudal máximo [lts/min] 300 700 1600 3300 5000 14000
Caudal mínimo [m3/hora] 2 4 10 20 30 80
Caudal máximo [m3/hora] 20 40 100 200 300 800
Length [mm] 140 200/



Nota 1: Los rangos de caudal máximo y mínimo indicados son los estandar 10:1 a pedido fabricamos 20:1
Nota 2: EL rango de presiones se extiende hasta 240 Kg/cm2 en otros procesos de conexión

                       Small to Medium Flow Rate Meters
Model FM-004AI FM-006AI FM-010AI FM-015AI FM-020AI FM-025AI FM-032AI
Connection [inches] 1/2" BSPT MACHO 1/2" BSPT MACHO 1/2" BSPT MACHO 1" BSPT MACHO 1" BSPT MACHO 1" BSPT / BRIDA 2" BSPT MACHO
Nominal Pressure [bar] 63 63 63 63 63 63 16
Min. Flow Rate  [Lt/min] 0.7  1.7 3.3  8  13  17  25
Max. Flow Rate [Lt/min]  4 10  20  100  130  160  250
Min. Flow Rate [m3/hr] 0.04 0.1 0.2 0.5 0.8 1 1.5
Max. Flow Rate [m3/hr] 0.25 0.6 1.2 6 8 10 15
Length [mm]       75 85 140



                    Medium to High Flow Rate Meters
Model FM-040AI FM-050AI FM-080AI FM-100AI FM-150AI FM-200AI
Connection [inches] 2" BSPT MACHO 2" BSPT/  ASME-150 3" BSPT/ ASME-150 4" Brida ASME-150 6" Brida ASME-150  8" Brida ASME-150
Presión máxima [bar] 63 63 63 15 15 15
Caudal mínimo [lts/min] 30 60 160 330 500 1300
Caudal máximo [lts/min] 300 700 1600 3300 5000 14000
Caudal mínimo [m3/hora] 2 4 10 20 30 80
Caudal máximo [m3/hora] 20 40 100 200 300 800
Length [mm] 140 200/



Nota 1: Los rangos de caudal máximo y mínimo indicados son los estandar 10:1 a pedido fabricamos 20:1
Nota 2: EL rango de presiones se extiende hasta 240 Kg/cm2 en otros procesos de conexión

Technical Data

  • Non-linearity: better than 0.5% standard and 0.2% on request

  • Repeatability: better than 0.05%

  • Body: AISI-304L standard, 316 on request

  • Rotor: AISI-440 standard and duplex on request

  • Bushings / Bearings: tungsten carbide / AISI-316

  • Lifespan: 80,000 hours at 80% higher maximum flow

  • Connection processes: BST-T, NPT, ASME-150, ASME-300, ASME-600, ASME-900, ASME-1500

  • Fluid temperature: minimum -20 ° C maximum 80 ° C normal range, -190 ° C to 120 ° C extended range

Common Applications

  • Water with aggressive chemicals at high pressure

  • Solvent plant

  • Fuel reception and dispatch control

  • Water, gas and oil separators



Operation of turbine flowmeters

Turbine flowmeters consist of a vane rotor, this is the only moving part, which rotates due to the flow in the pipe. The rotor design attempts to keep flow disturbance to a minimum, taking as little energy as possible from the moving fluid. The vanes cut the fluid in a helical shape. Each revolution of the rotor, given by the longitudinal advance of the fluid, is translated into a particular volume multiplied by a scale factor of each equipment. The errors in the measurement of this equipment are given by two factors: the mechanical traction effects (between the fluid and the meter components) and magnetic traction effects (which originate between a pick-up coil and the rotor blades). they are a source of error. In turn, the traction effects vary with the frequency of rotation of the turbine, for this reason they represent a source of non-linearity in the frequency-flow curve of the meter.
