200-UTG Series Thickness gauge
Download files

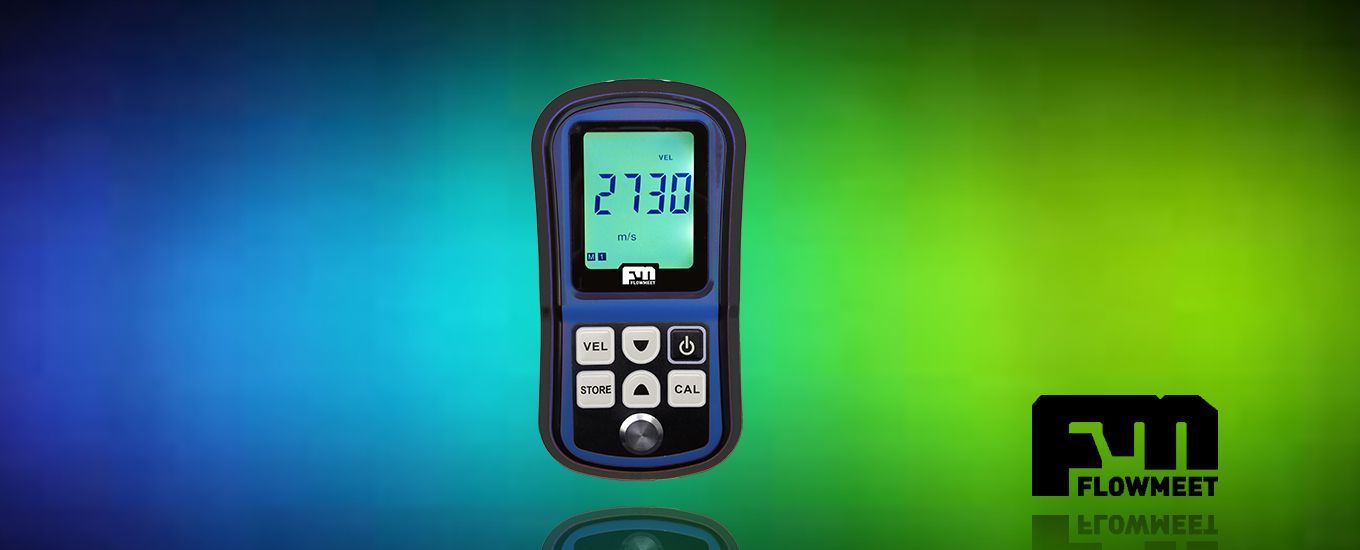

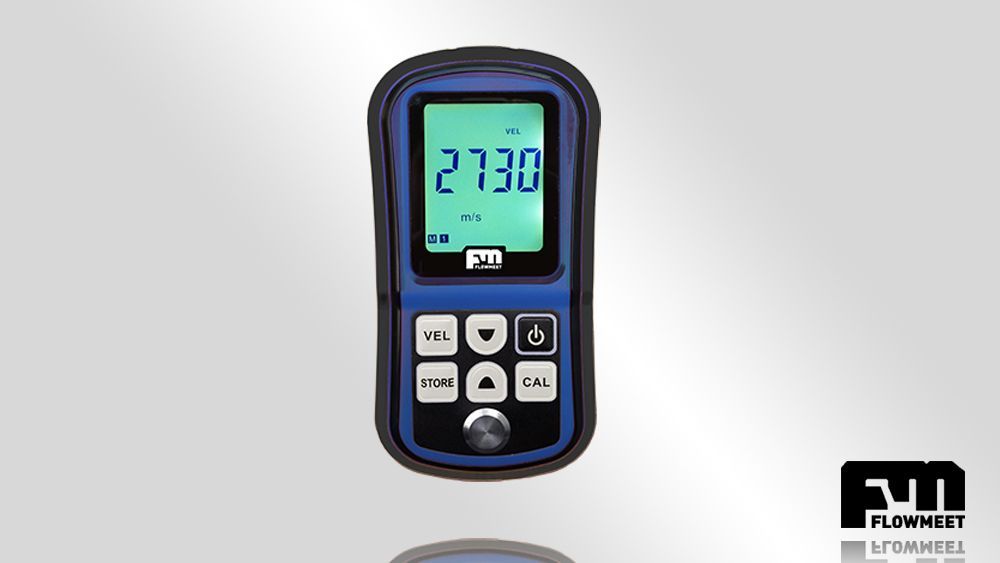

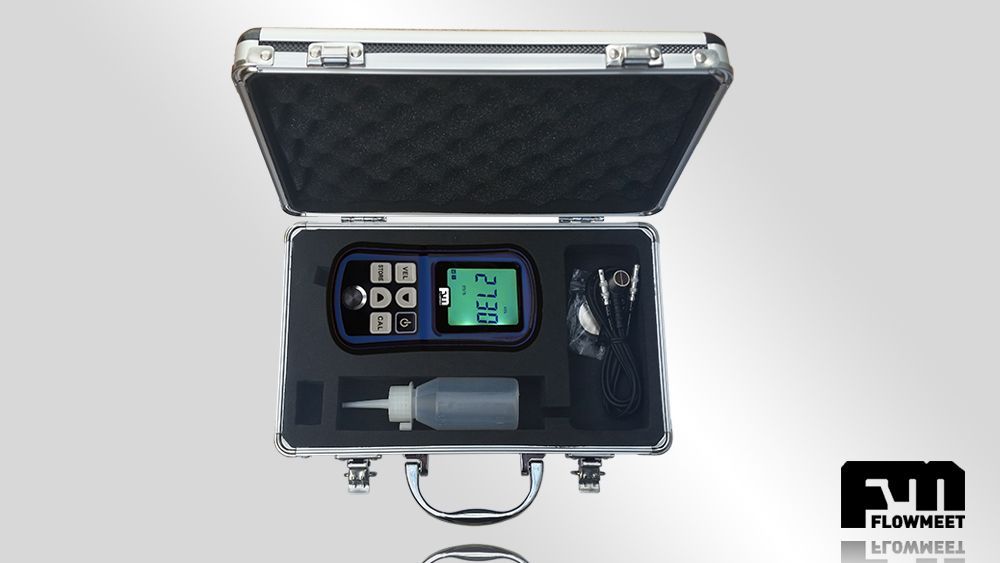

The FLOWMEET 200-UTG Series ultrasonic thickness gauges are the simplest and most reliable solution for the measurement of thickness of any material such as metals, plastics, ceramics, composites, epoxies, glass and any material capable of conducting an ultrasonic wave. It provides a quick and adequate measurement for various measurement instances. It is used to calculate pipe thicknesses for the use of clamp-on ultrasonic flowmeters.
Widely used in the oil, chemical, metallurgical, shipping and aerospace industries, among others.
Technical data
-
Accuracy: ± (1% of Thickness + 0.1) mm
-
Measure Range: 1.0 ~ 300mm
-
Sound speed: 1000 ~ 9999m / s
-
Working Frequency: 5MHz
-
Self calibration to ensure accuracy
-
Data saving / Data reuse
-
Sound velocity measurement
-
Low Battery Indication
-
Auto off
-
Backlit LCD
-
Power supply: 3 AAA 1.5V batteries
-
Weight: 210 gr
-
Dimensions: 70x145x28mm
Common applications
-
Measurement of pipe thicknesses for the use of clamp-on ultrasonic flowmeters
-
Measurement of metal thicknesses
-
Plastic thickness measurement
-
Ceramic thickness measurement
-
Thickness measurement of composite materials
-
Measurement of epoxy thicknesses
-
Glass thickness measurement
