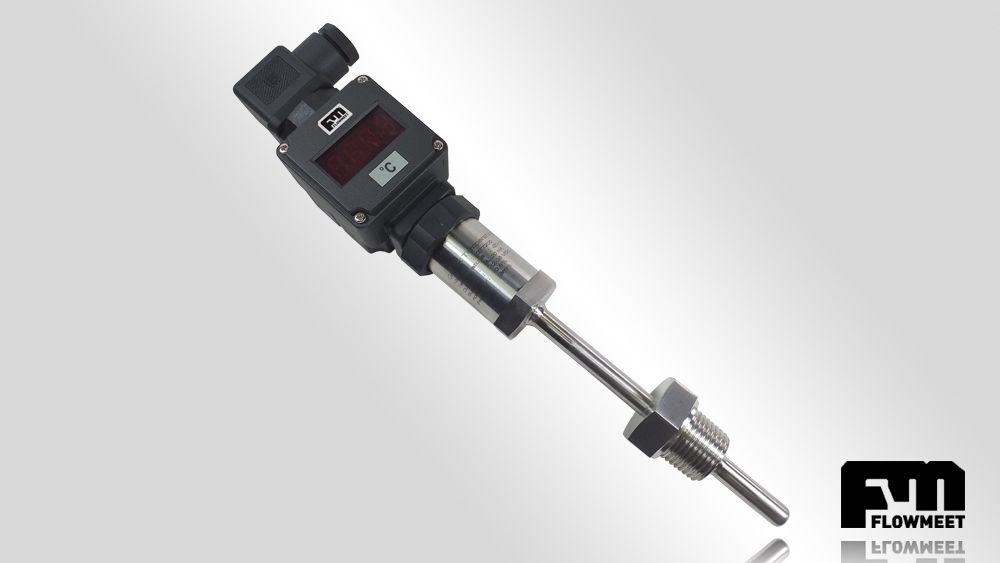

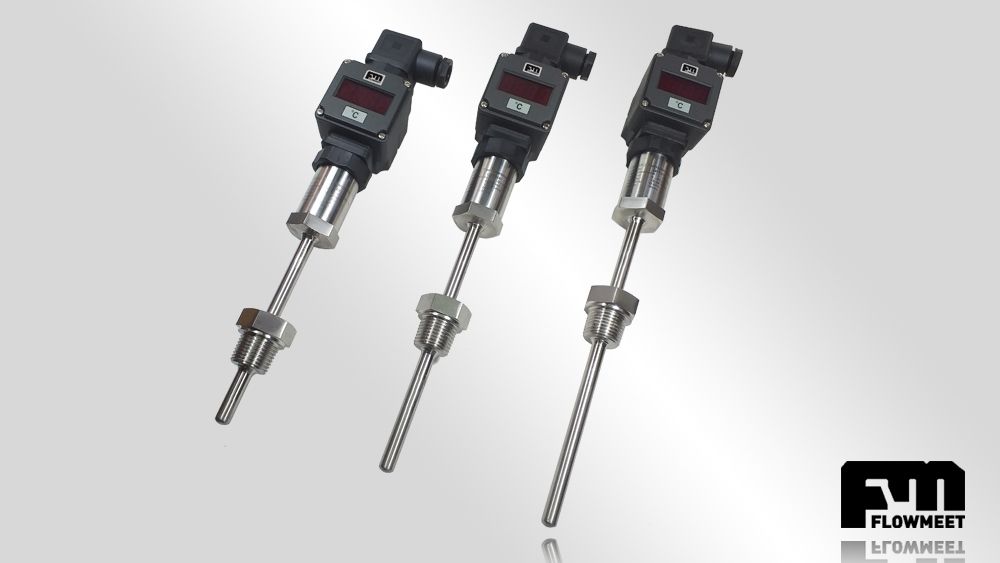

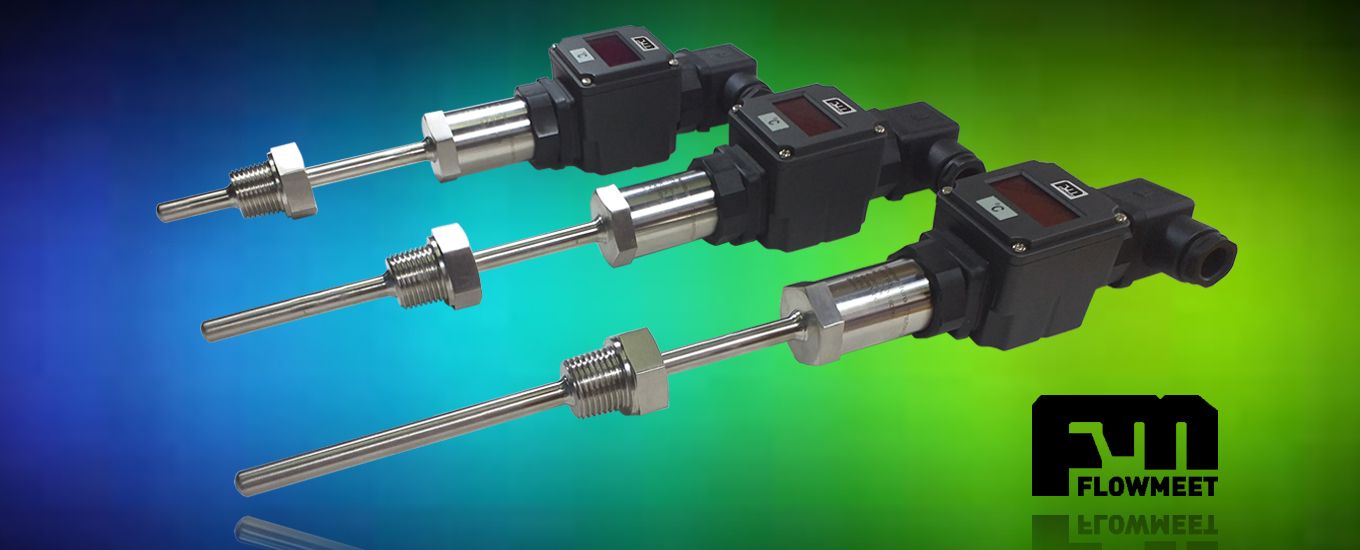

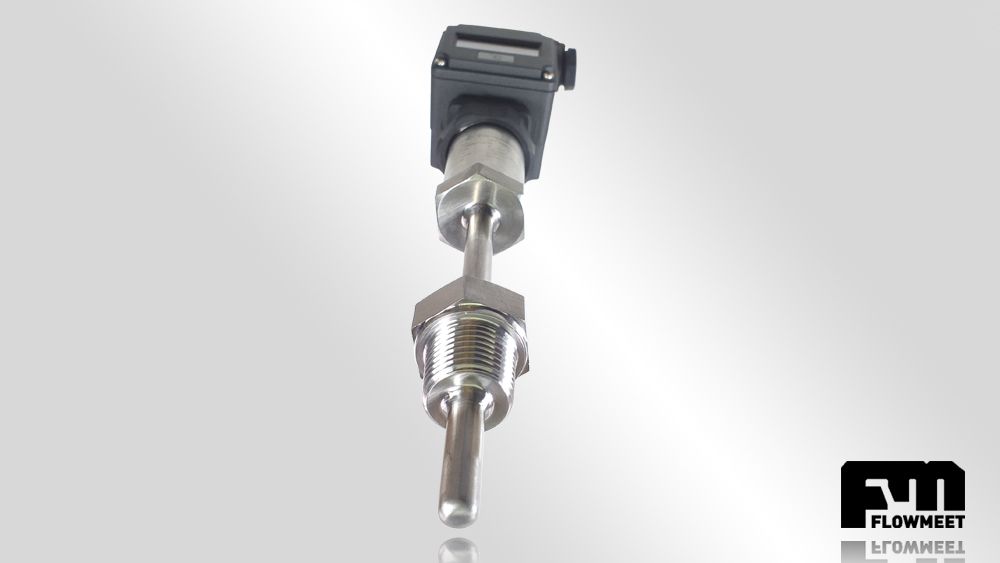

TS Series Temperature Meter

      Medidor de temperatura FLOWMEET



      The FLOWMEET TS Series Temperature Gauges are excellent quality gauges ideal for use in pipelines of various fluids. They are ideal for installation in pipes of different diameters, in tanks, etc. They have a display for the local display of the value and 4-20mA output to process the temperature value in real time in any device that allows such input.


      TS Series Temperature Meter
      Model TS-A-D-G-030-420 TS-A-D-G-040-420 TS-A-D-G-065-420 TS-A-D-G-100-420
      Indicator Local Display Local Display Local Display Local Display
      Output 4-20mA 4-20mA 4-20mA 4-20mA
      encapsulated material 304 SS  304 SS 304 SS 304 SS
      Range -20°C~150°C -20°C~150°C -20°C~150°C -20°C~150°C
      Connection  1/2 NPT male thread  1/2 NPT male thread  1/2 NPT male thread  1/2 NPT male thread
      Accuracy +-0.5% FS   +-0.5% FS +-0.5% FS  +-0.5% FS
      Power Supply 24 VDC 24 VDC 24 VDC 24 VDC
      Sheath diameter 8mm 8mm 8mm 8mm
      Sheath length not including thread 30mm 40mm 65mm 100mm
      Compatible pipe diameter 1'' 1,5 '' - 2'' 3'' y 4'' 6''




      Technical data

      • Temperature sensor with local display

      • Range: -20 ~ 150 ° c

      • Accuracy: + -0.5%

      • Sheath diameter: 8mm

      • Weight: 0.4kg

      • Output: 4-20mA (2 wires)

      • Connection: 1/2 NPT threaded

      • Encapsulated material: 304 stainless steel

      • Electrical connector: DIN43650

      • Power supply: 24 VDC.

      Common applications

      • This product is widely used in various industries:

      • Oil Companies

      • Chemical

      • Metalurgic

      • Energy

      • Textile

      • Alimentary


      Temperature meter description

      The Hirschmann Junction Integrated Temperature Transmitter consists of a temperature and thermal resistance transmitter module, with non-linear correction circuit. It can be measured directly in an online circuit in the industrial process within the scope of liquid, gaseous and all kinds of medium. The output signal is a linear 4 ~ 20 mA output.
