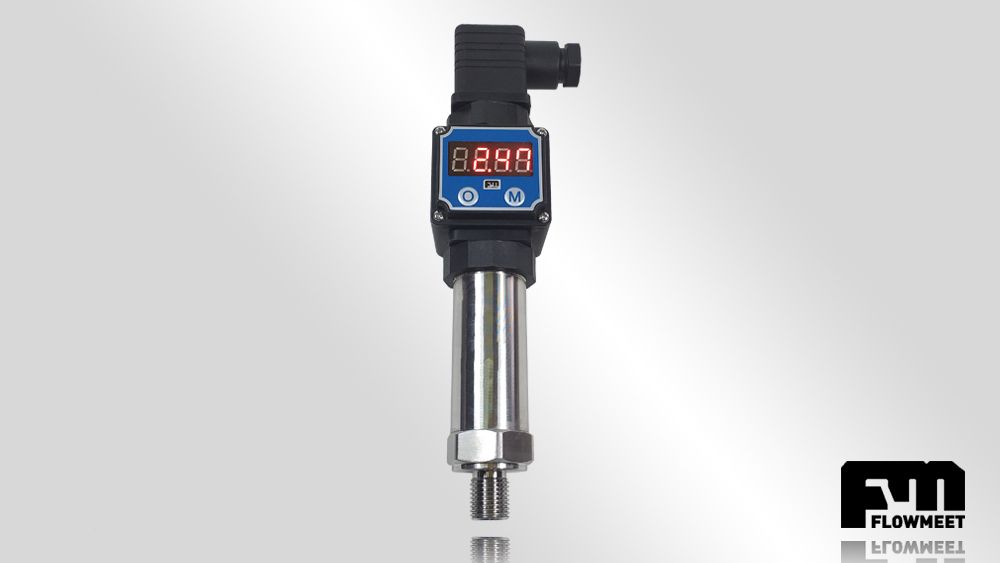

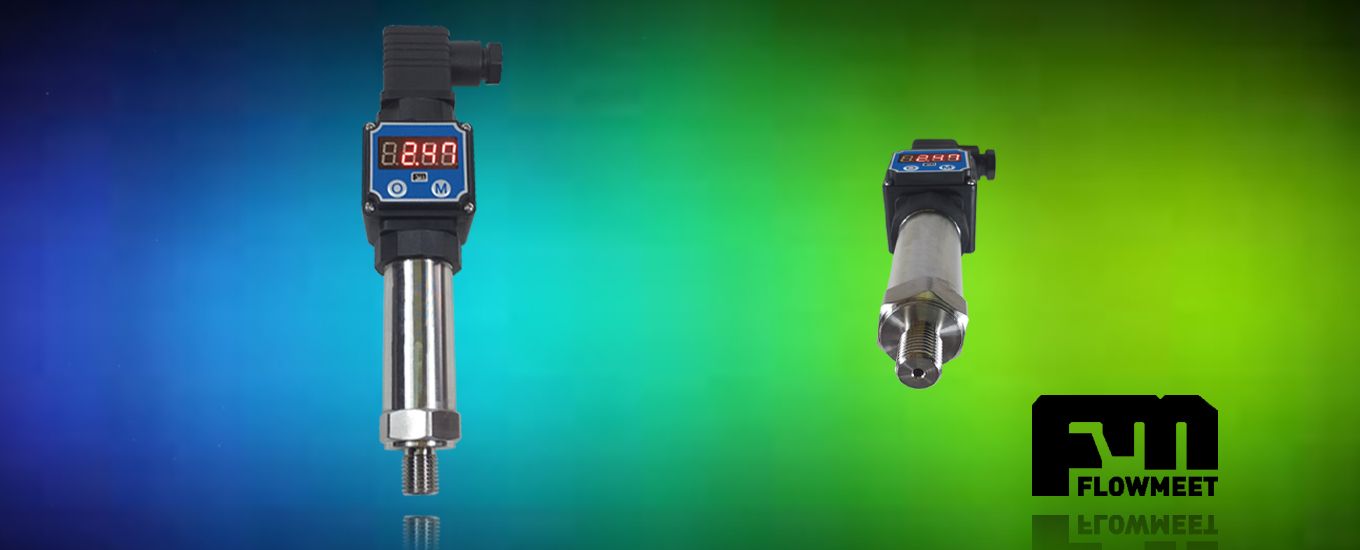

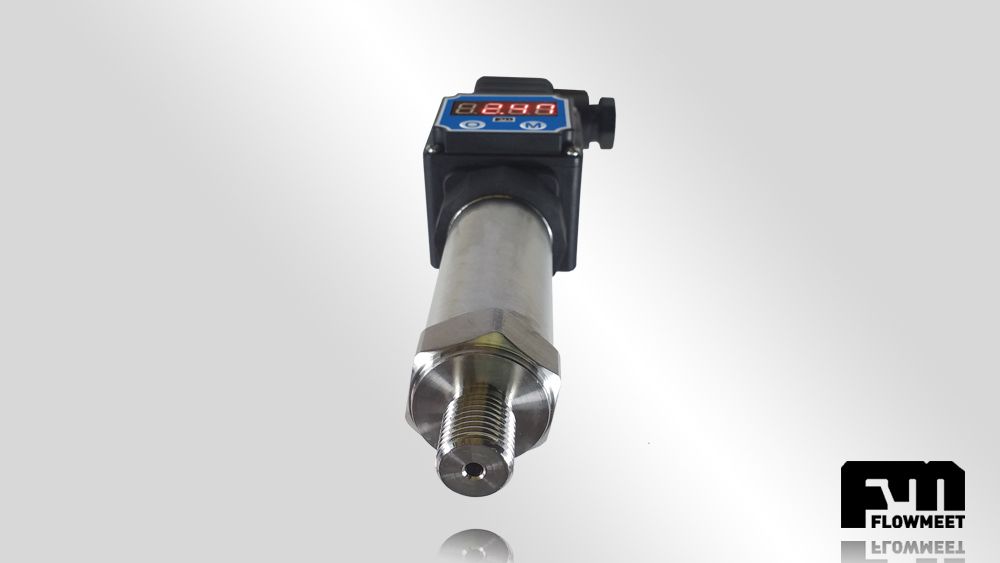

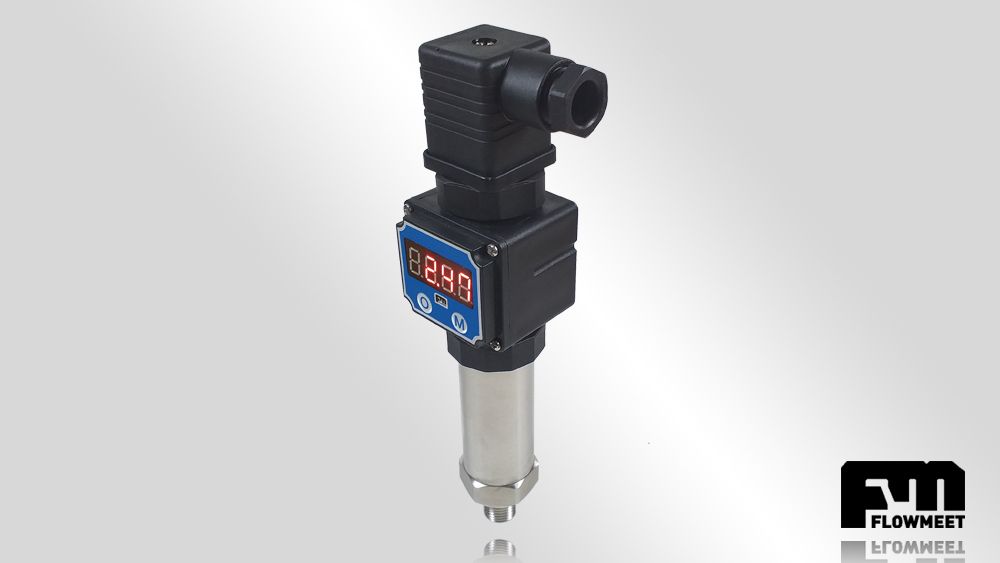

PS Series Pressure Sensors

      Medidor de presion FLOWMEET


      The FLOWMEET PS Series Pressure Gauges and Vacuum Gauges are excellent quality gauges ideal for use in piping of various fluids. They are ideal for installation in pipes of different diameters, in tanks, etc. They have a display for local visualization of the value and 4-20mA output to process the pressure value in real time in any device that allows such input.

      PS Series Pressure Gauge
      Model PS-06V-D-420 PS-0.2-D-420 PS-10-D-420 PS-20-D-420 PS-100-D-420 PS-200-D-420 PS-600-D-420
      Indicator Local Display Local Display Local Display Local Display Local Display Local Display Local Display
      Output 4-20mA 4-20mA 4-20mA 4-20mA 4-20mA 4-20mA 4-20mA
      Encapsulated material 304 SS  304 SS 304 SS 304 SS 304 SS 304 SS 304 SS
      Range -0,6~0 bar 0~0.2 bar 0~10 bar 0~20 bar 0~100 bar 0~200 bar 0~600 bar
      Connection 1/4'' BSP Male thread 1/4'' BSP Male thread 1/4'' BSP Male thread 1/4'' BSP Male thread 1/4'' BSP Male thread 1/4'' BSP Male thread 1/4'' BSP Male thread
      Accuracy +-0.5% FS   +-0.5% FS +-0.5% FS  +-0.5% FS  +-0.5% FS  +-0.5% FS  +-0.5% FS
      Power supply 24 VDC 24 VDC 24 VDC 24 VDC 24 VDC 24 VDC 24 VDC




      Technical data

      • Pressure Transmitter Sensor with Local Display

      • Accuracy: + -0.5% Full Scale

      • Working temperature: -10 ~ 70 ℃

      • Degree of Protection: IP65

      • Compatible with intrinsic protection according to ExiaⅡCT6

      • Weight: 0.4kg

      • Output: 4-20 mA.

      • Connection: 1/4 '' BSP male thread

      • Encapsulated material: 304 stainless steel

      • Electrical connector: DIN43650

      • Compatible with ExiaIICT6 explosion proof certification

      • Power supply: 24 VDC.


      Common applications

      • This product is widely used in various industries:

      • oil industries

      • chemical

      • metallurgical

      • energetic

      • textile

      • food


      Pressure gauge description

      The pressure transmitter is widely used in pressure sensing of gas, liquid, such as water, oil, liquid and mild corrosive gases. The product uses the 1Cr18Ni9Ti stainless steel structure and the precise calibration of the excellent quality pressure core.
