LC Series Level Computers

      Computador de nivel Serie LC

      Download files

       LMC User Manual

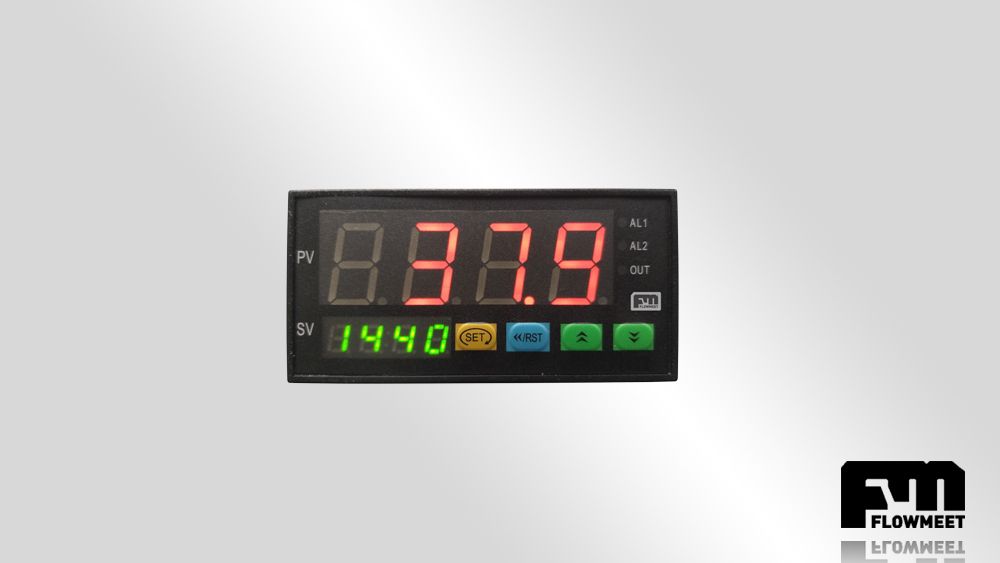

      FLOWMEET LC Series level computers are equipment used for the remote display of level variables, suitable for all types of sensors with 4-20mA output. They are suitable for remote measurement of FLOWMEET level meters: PH Series hydrostatic and U Series ultrasonic

      LC Series Model Tables
      Model  FLM-LC-I1-B-T1-V2-S-D2 FLM-LC-I1-B-T1-V2-R-D2  FLM-LC-I1-B-T1-V2-R-D2-PAN
      Input 4-20mA  4-20mA  4-20mA
      Output 4-20mA  4-20mA   4-20mA
      Alarms - 2 configurable Relay outputs 2 configurable Relay outputs
      Gabinete Plástico - - -
      Alimentación 24VDC 24VDC 24VDC (Device Included)



      Technical data

      • 4-20mA input

      • 2 configurable relay outputs for alarms (optional)

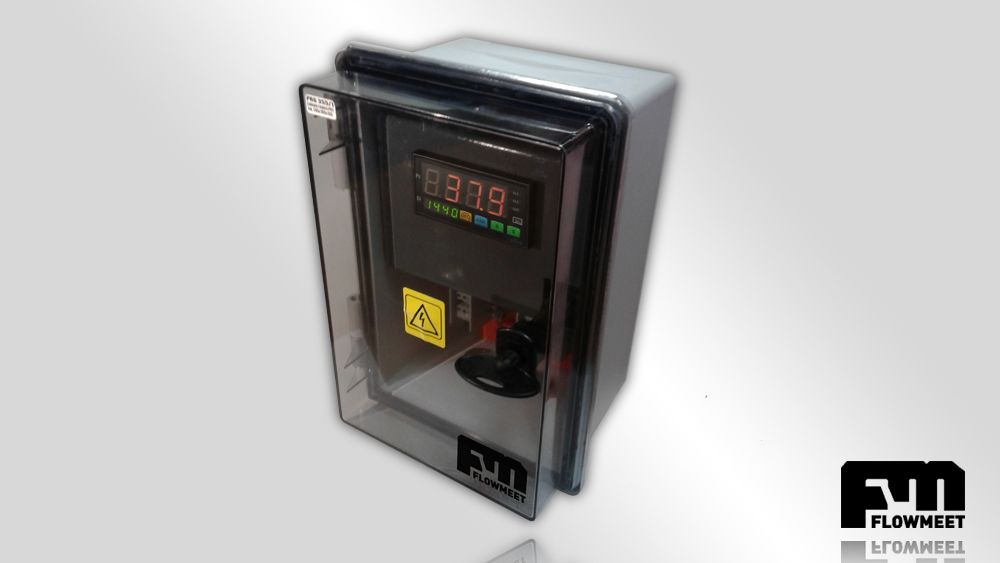

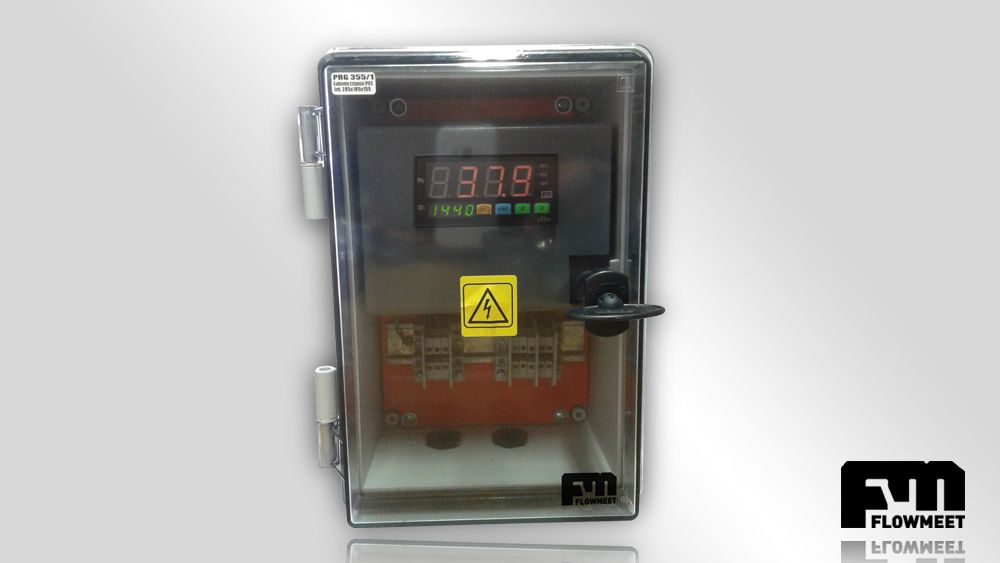

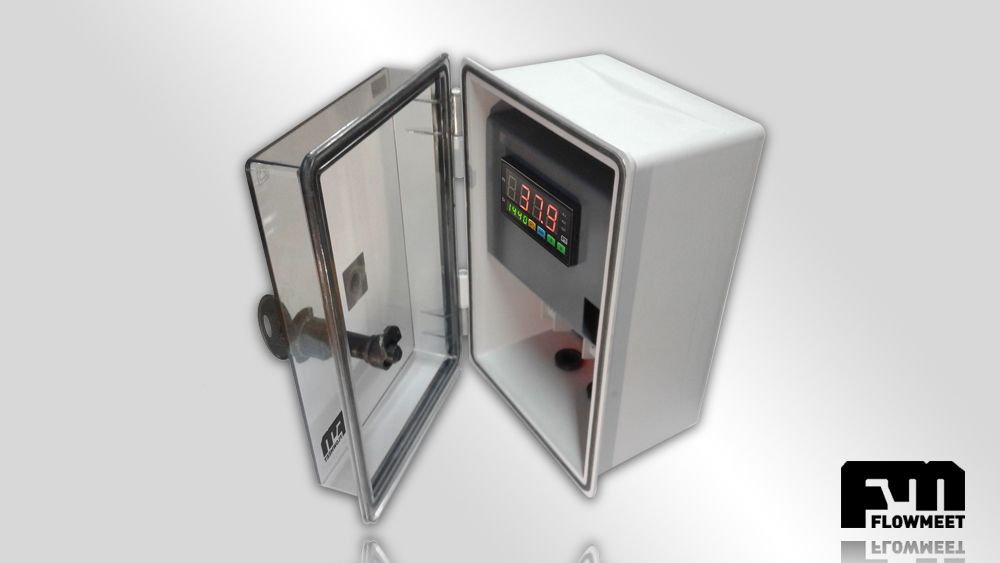

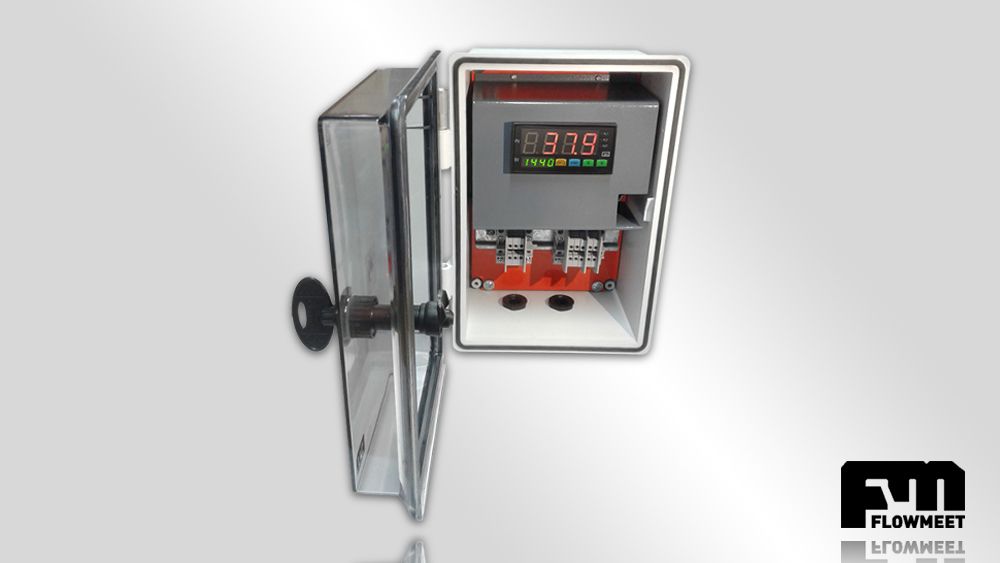

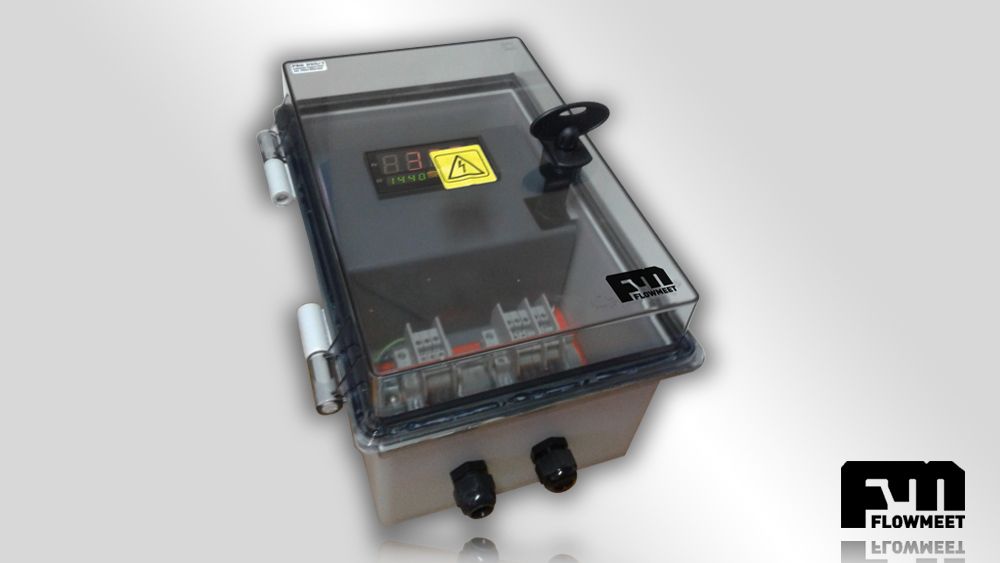

      • Panel Cabinet: 285mm x185mm x155mm IP (optional)

      • 4-20mA output

      • Alimentación 24VDC

      Common applications

      • Storage tanks for liquids

      • Effluent wells

      • Rivers, Canals and Lakes

      • Buffer tanks
